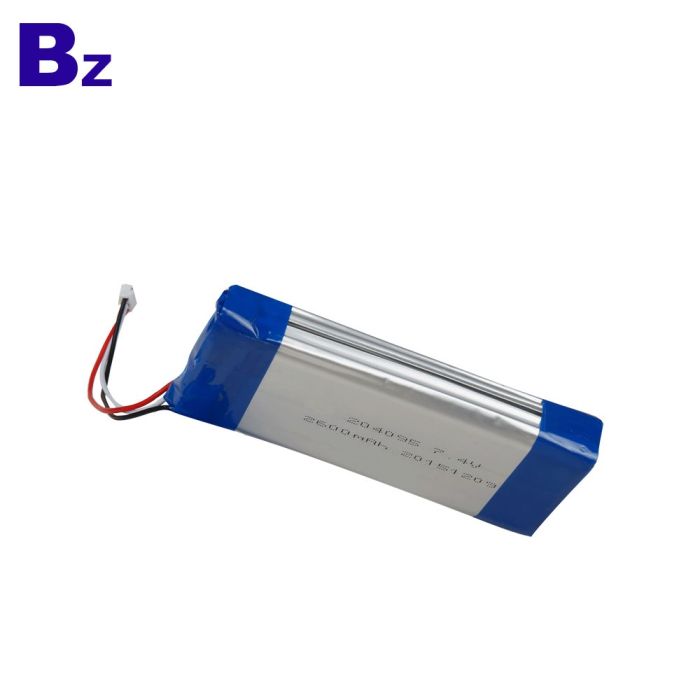

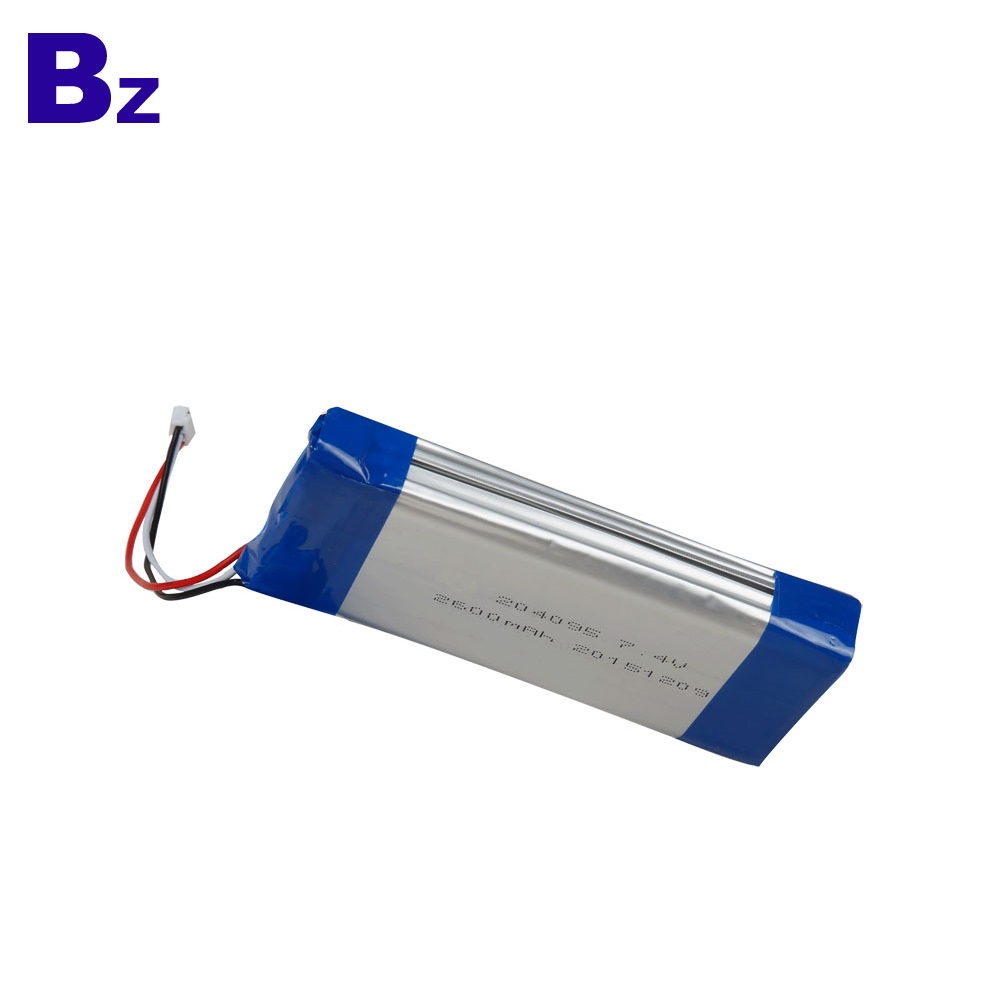

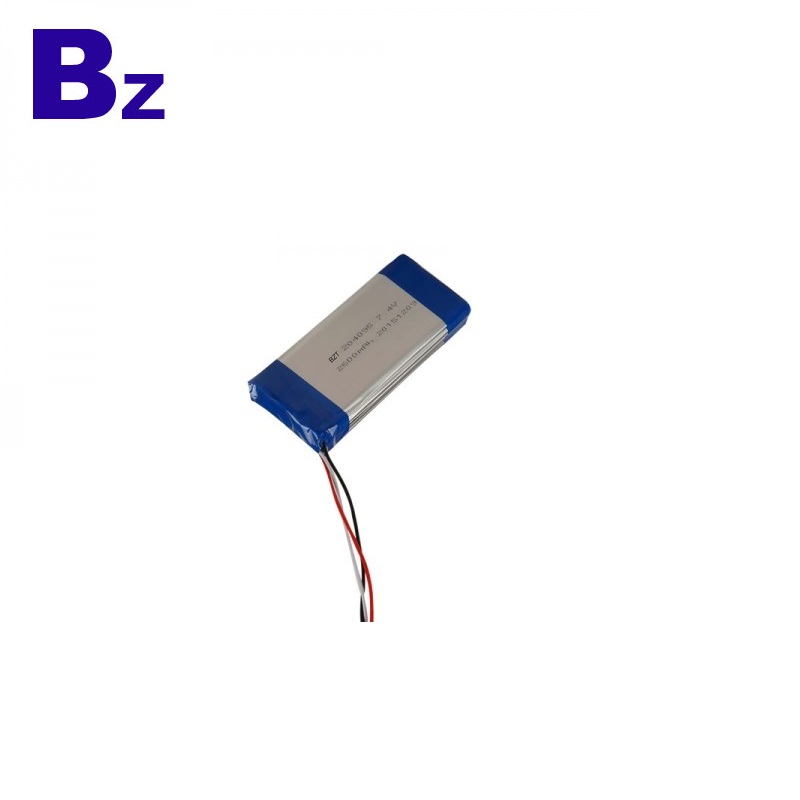

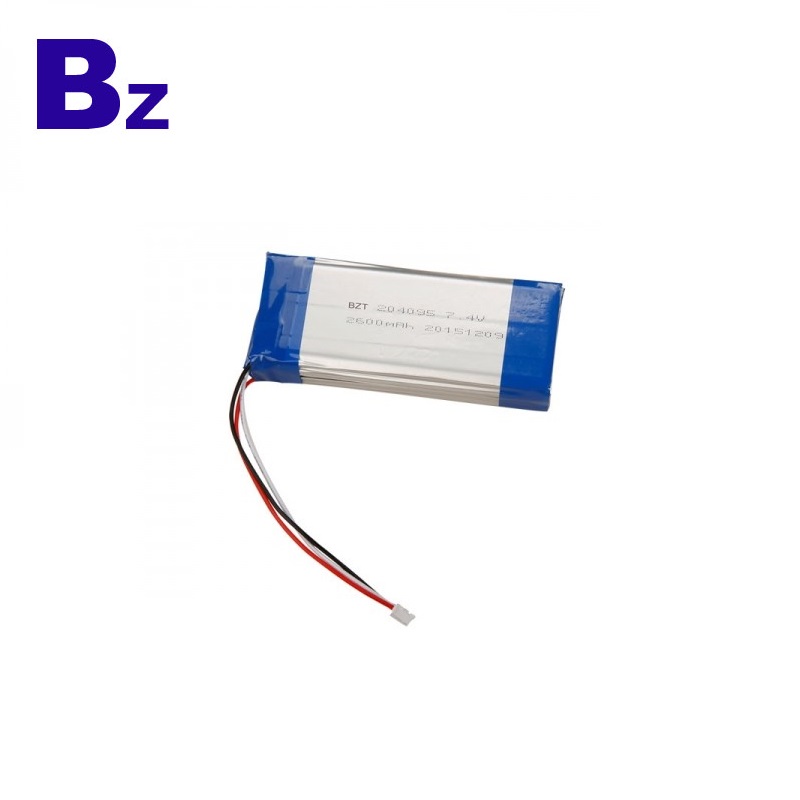

中國鋰電池電芯製造商客製化醫療設備電池 BZ 204095 7.4V 2600mAh 鋰聚合物電池
價格：US $ 1.2-1.5 /安培
最低訂購：1,000安培
如需訂購鋰電池請聯繫我們！
品牌名稱：BZ
型號：204095
類型：鋰聚合物
標稱電壓：7.4V
尺寸：20*40*98mm
標稱容量：2600mAh
產品名稱： 104095-2S鋰離子電池
保固期：1 年
重量：98公克
循環壽命：500次
容量：2600mAh
電壓：7.4V
應用：醫療設備
證書：CE/RoHS/UN38.3/MSDS/KC/UL/CB/IEC62133
付款方式：Paypal.TT.Escrow.Western Union
最大充電電流：1C
Medical Battery - BZ 204095 - 7.4V - 2600mAh - Lithium Ion Battery - Rechargeable
|
No. |
Item |
General Parameter |
Remark |
|
|
1 |
Rated Capacity |
Typical |
2600mAh |
Standard discharge（0.2C C5A) after Standard charge |
|
Minimum |
2550mAh |
|||
|
2 |
Nominal Voltage |
7.4V |
Mean Operation Voltage |
|
|
3 |
Voltage at end ofDischarge |
5.8V |
Discharge Cut-off Voltage |
|
|
4 |
Charging Voltage |
8.4±0.03V |
|
|
|
5 |
Internal Impedance |
≤180mΩ |
Internal resistance measured at AC 1KHZ after 50% charge The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times |
|
|
6 |
Standard charge |
Constant Current 0.2C5AConstant Voltage 8.4V0.01 C5A cut-off |
Charge time : Approx 6h |
|
|
7 |
Standard discharge |
Constant current 0.2 C5Aend voltage5.8V |
|
|
|
8 |
Fast charge |
Constant Current 1.0C5AConstant Voltage 8.4V0.01 C5A cut-off |
Charge time : Approx 2.5h |
|
