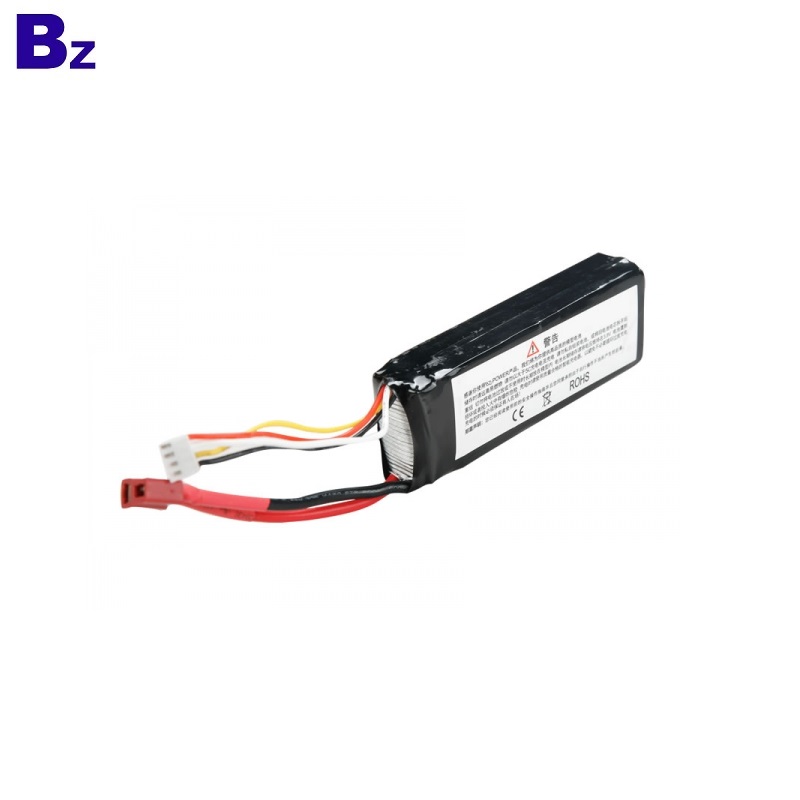

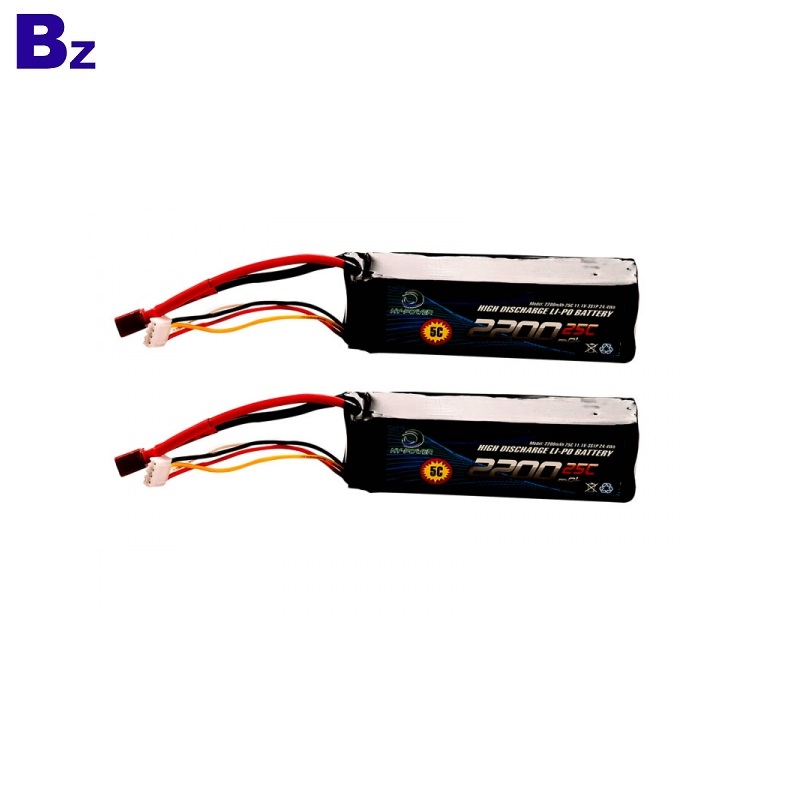

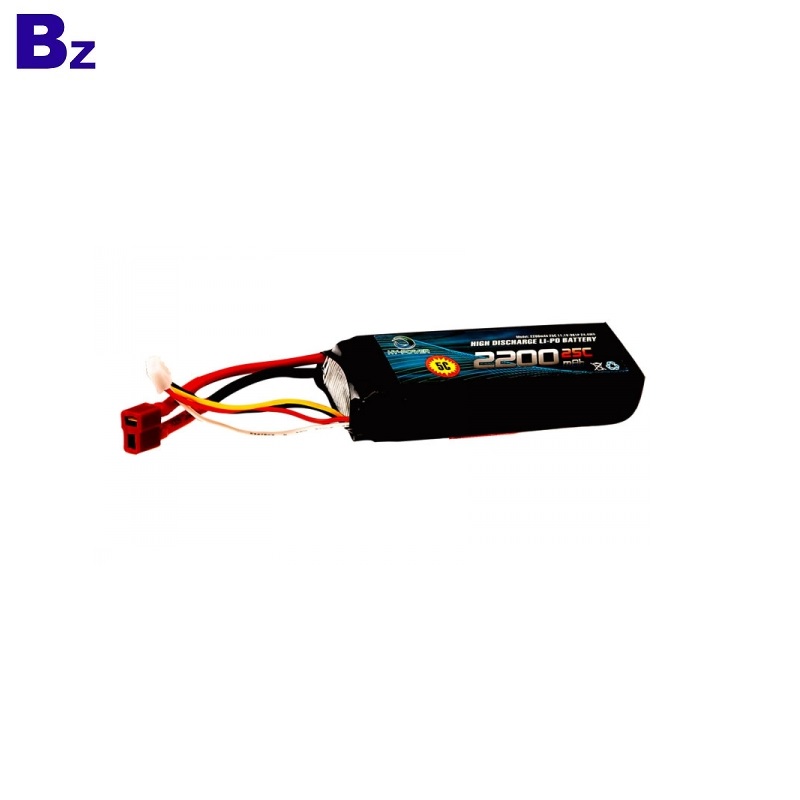

中國鋰電池製造商客製化 BZ 903480 2200mah 25C 11.1V 高倍率鋰電池用於RC航模
$10.50
In stock
SKU
BZ 903480 2200mah 25C 11.1V
價格：10-10.5美元/件
最小訂單：500件
如需訂購請與我們聯系！
典型容量：2200mAh
最小容量：2150mAh
能量：24.42Wh
標稱電壓：11.1V
開路電壓：11.1~11.8V
內阻：≤20mΩ
充電電壓：12.6V
High Rate Battery - BZ 903480 - 2200mah - 25c - 11.1v - Lithium Ion Battery - Rechargeable
| No. | Item | Criteriar | Remarks | |
| 1 | Typical Capacity Minimum Capacity |
2200mAh 2150mAh |
Discharge:0.2CmA cut-off voltage:9.0V 0.2C | |
| 2 | Energy |
24.43Wh | ||
| 3 | Nominal Voltage | 11.1V | ||
| 4 | Open Circuit Voltage | 11.1~11.8V | ||
| 5 | Internal Impedance | ≤20mΩ |
AC 1KHz after standard charge | |
| 6 | Charge voltage | 12.6V | ||
| 7 | Standard charge current |
2200mA | 1.0C | |
| 8 | Max. charge current | 4400mA | 2.0C | |
| 9 | Max. discharge current | 55.0A( 25.0C) 110.0A (50.0C) | Cont Discharge CurrentBurst Discharge Current | |
| 10 | Discharge cut-off voltage | 9.0V | ||
| 11 | Operating Temperature |
0~+45℃ -10~+50℃ |
ChargingDischarging | |
