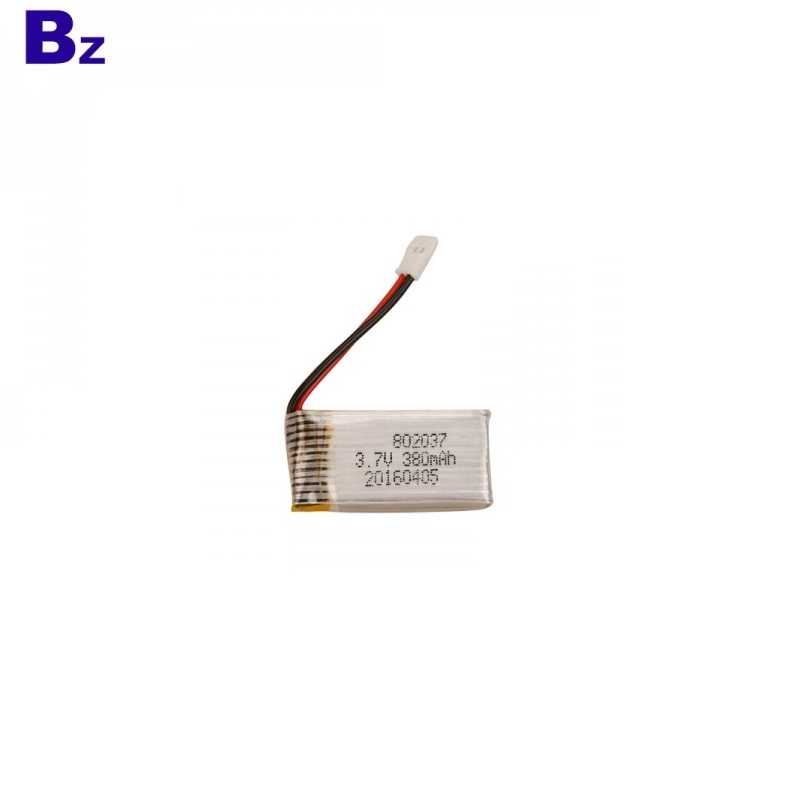

中國鋰電池製造商 OEM 高倍率電池適用於RC航模 BZ 802037 380mAh 15C 3.7V 鋰聚合物電池
價格：4.2-4.5美元/件
最小訂單：5000件
如需訂購請與我們聯系！
產地：中國廣東
品牌名稱：BZ
型號：802037
類型：鋰聚合物
標稱電壓：3.7V
尺寸：8*20*37mm
標稱容量：380mAh
產品名稱： BZ 802037 高倍率電池
保固期：1 年
重量：10克
循環壽命：500次
容量：380mAh
電壓：3.7V
應用：遙控模型
證書：CE/RoHS/UN38.3/MSDS
付款方式：Paypal.TT.Escrow.Western Union
最大充電電流：1C
High Rate Battery - BZ 802037 - 380mah - 15c - 3.7v - Lithium Ion Battery - Rechargeable
|
No. |
Item |
General Parameter |
Remark |
|
|
1 |
Rated Capacity |
Minimum |
380mAh |
Standard discharge（0.2C C5A) after Standard charge |
|
2 |
Nominal Voltage |
3.7V |
|
|
|
4 |
Charging Voltage |
4.2±0.03V |
|
|
|
5 |
Internal Impedance |
≤180mΩ |
Internal resistance measured at AC 1KHZ after 50% charge The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times |
|
|
6 |
Standard charge |
Constant Current 0.2C5A Constant Voltage 4.2V 0.01 C5A cut-off |
Charge time : Approx 6h |
|
|
7 |
Standard discharge |
Constant current 0.2 C5A end voltage 2.75V |
|
|
|
8 |
Fast charge |
Constant Current 1.0C5A Constant Voltage 4.2V 0.01 C5A cut-off |
Charge time : Approx 2.5h |
|
|
9 |
Fast discharge |
Constant current 15C5A end voltage 2.75V |
|
|
10 |
Maximum Continuous Charge Current |
1.0 C5A |
|
|
11 |
Maximum Continuous Discharge Current |
15C5A |
