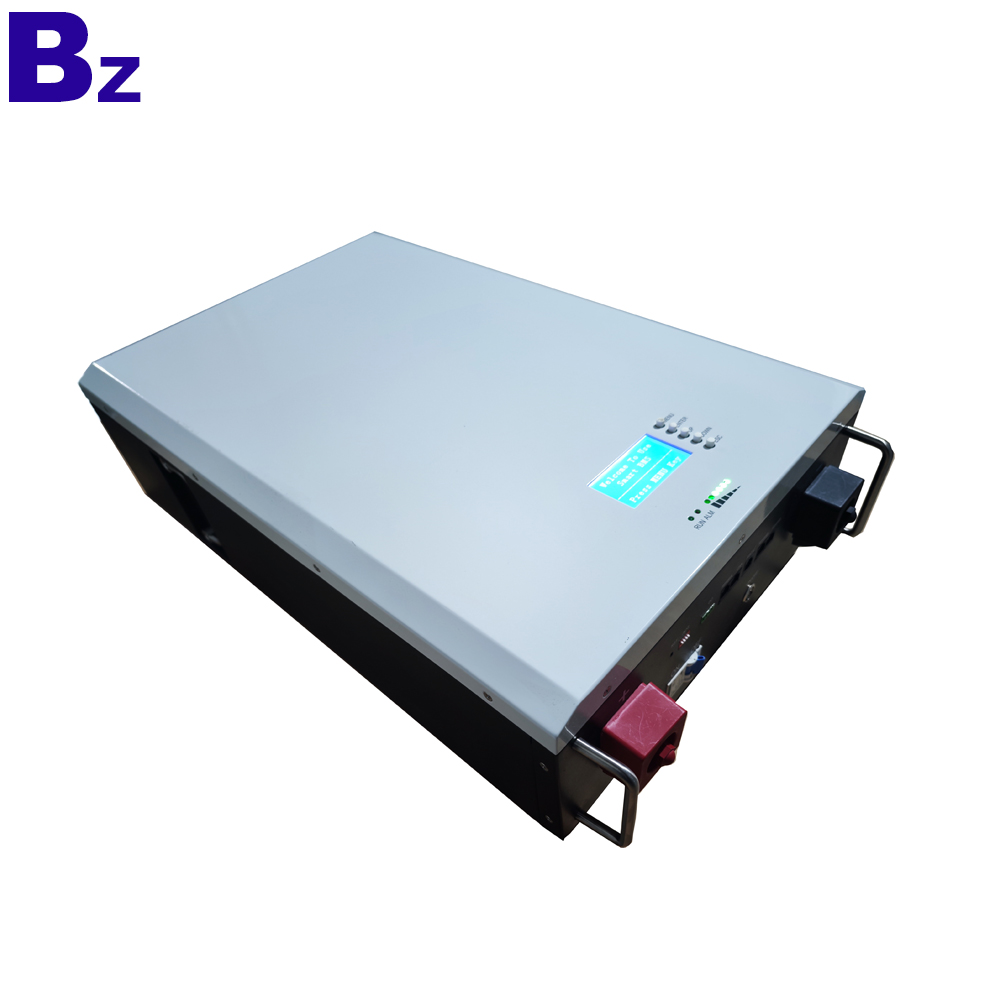

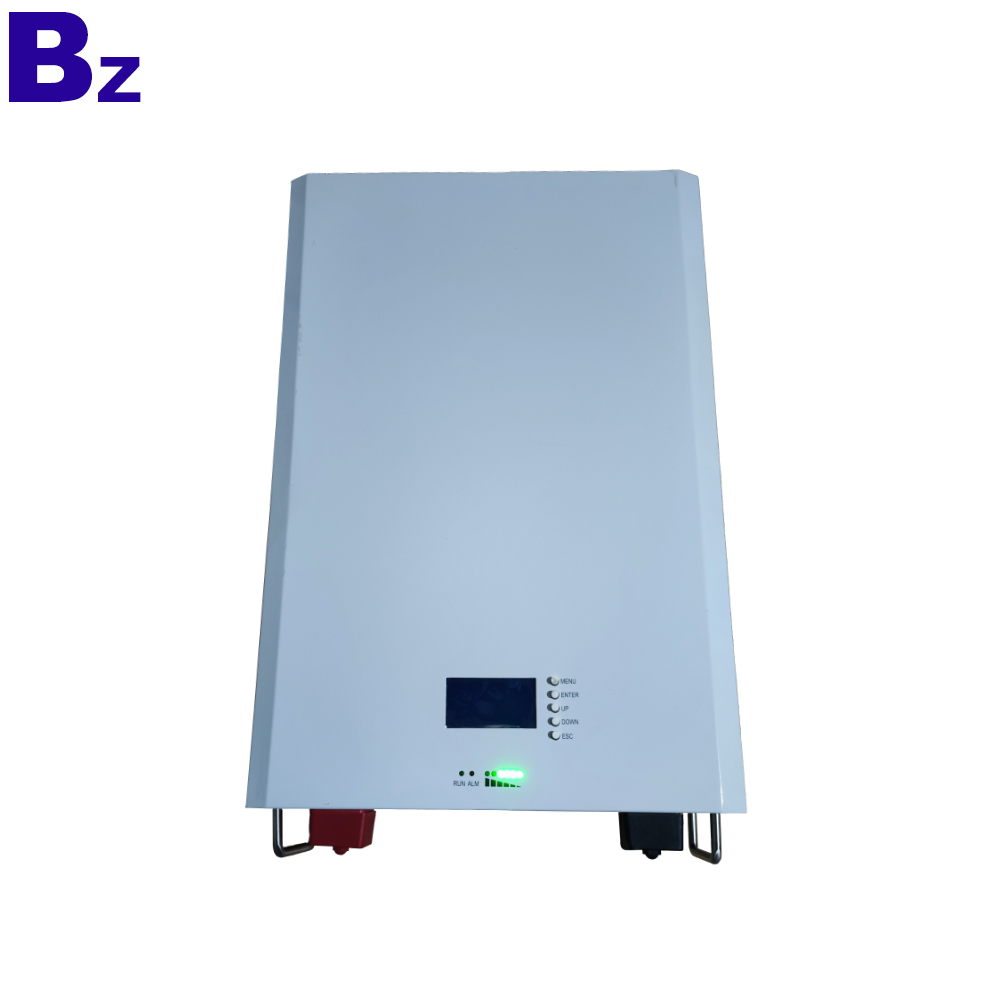

供應壁掛式電池 LiFePO4 51.2V 48V 100Ah 5KWH 太陽能家用系統電池組
$877.00
In stock
SKU
5kWh Battery Pack
價格：US $ 1.2-1.5 /安培
最低訂購：1,000安培
如需訂購鋰電池請聯繫我們！
- 產地：中國廣東
品牌名稱：BZ
型號：TH-48200-W
類型：LiFePO4
標稱電壓：48V / 51.2V
通讯：CAN, RS232, RS485
保修：5年
重量：64kg
應用：家用太陽能存儲系統
證書：UN38.3/CE/MSDS/ROHS
付款方式：Paypal.TT.Escrow.Western Union
Product Parameters
|
Model |
TH-48200-W |
|
Nominal Voltage |
48V / 51.2V |
|
Cell model / Configuration |
3.2V 100Ah(ANC) / 15S2P |
|
Capacity |
100Ah |
|
Rated Energy |
5kWh |
|
Usable Energy |
4.05kWh |
|
Max. Charge / Discharge Current |
100A / 100A |
|
Voltage Range (Vdc) |
48-56.5V |
|
Scalability |
Up to 10 parallel |
| Communication |
RS232-PC, RS485(B)-BAT RS485(A)-inverter,Canbus-inverter |
|
Cycle Life |
≥6000cycles@25℃, 90% DOD, 60%EOL |
|
Design Life |
≥15 Years(25℃) |
|
Weight (Approx) |
57kg |
|
Dimension (W/D/H) |
485*690*186(226 Including hanger)mm |
|
Installation Mode |
Wall hanging |
|
IP Grade |
IP21 |
|
Operating Temperature (℃) |
Charge: -10℃ ~ 50 ℃； Discharge: -20℃ ~ 50℃ |
|
Altitude (m) |
≤2000 |
|
Humidity |
≤90% (Non-condensing) |
